Production

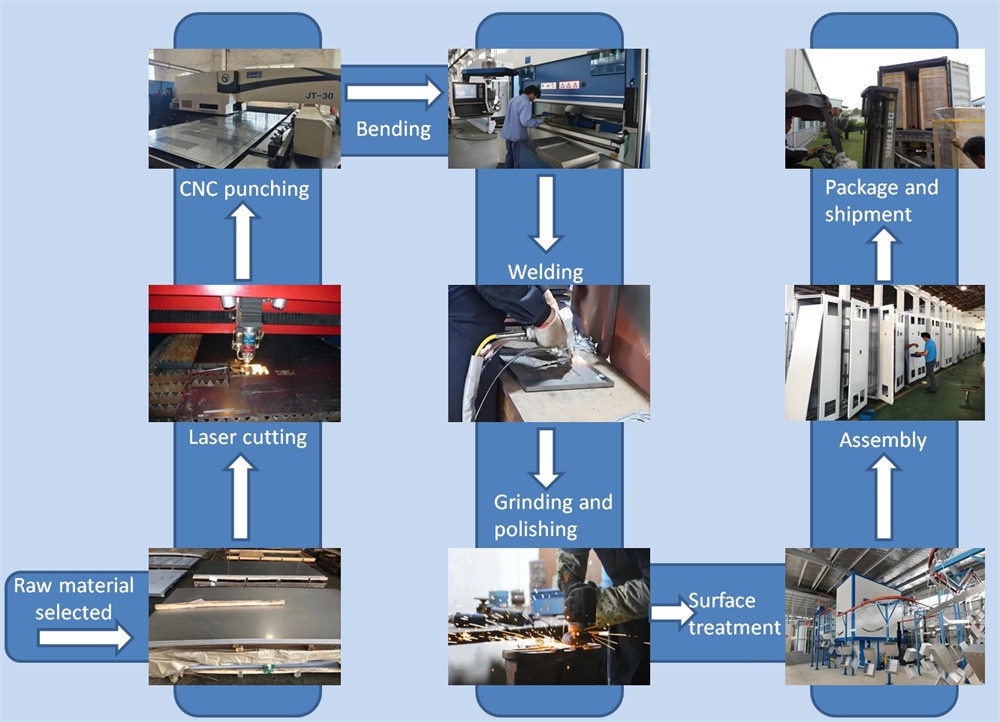

We have the advanced CNC processing equipment of high-power laser cutting machines, CNC punches, CNC bending machines, CNC shears, welding equipment, plasma cutting machines, tapping machines and so on and can offer comprehensive support services. Our processing flow and scope is as below:

1).Processing object

 Iron, stainless steel, copper, aluminum, composite aluminum plate and other metal materials Processing range: plate thickness 1mm-6mm plate length 100mm-3000mm plate width 12mm-1200mm

2) .Laser cutting
Processing object: ordinary steel plate, stainless steel, galvanized plate, electrolytic plate, organic plate, plywood
Processing thickness: ordinary steel plate 0.8mm—20mm, stainless steel 0.8mm—-12mm galvanized plate, electrolytic plate 1.0mm—12mm organic plate, wood plywood 1.0mm—20mm. The maximum size range of processed plate is 3000mm * 1500mm.
3) .Punching
Processing object: iron plate, stainless steel, aluminum plate
Processing thickness: iron plate 0.5mm—3.0mm stainless steel 0.5mm—2.0mm aluminum plate 0.5mm --- 6.0mm processing maximum plate size: 1270 mm * 2500mm
4). Round processing
Material: stainless steel, iron Processing thickness: stainless steel 0.5mm -5mm iron 0.5mm-10mm The diameter of the circle is 180mm or more
5) .Welding processing
Tig welding, electric welding, laser welding, butt welding
6). Paint processing
Processing range: maximum size, 2000mm high and 1500mm wide
7) .Shear folding
Bending thickness: 0.5mm—5.0mm Length: 10mm --- 3000mm

Shear plate thickness: 0.3mm --- 6.0mm length: 15mm --- 3500mm

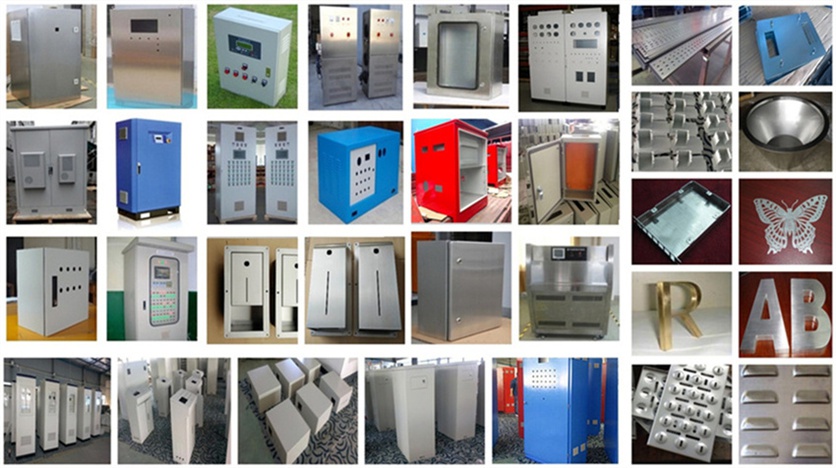

Products we making：Electric control panel cabinets, washroom accessories, gates operator covers, switch button control cabinets, IP NEMA enclosures, RITTAL  power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, security console boxes, valve box, electrical operator tables, terminal box, signal cabinet, disinfection cabinet, air control cabinet, sensor bracket,, sheet metal laser cutting parts, punching parts, rolling circularity parts etc..
