Stainless Steel NEMA Type Wall Mounting Electrical Enclosures
Payment :
T/TProduct Origin :
ChinaColor :
silverItem NO. :
0040-ECPB-TCH
Wall Mounting NEMA IP65 Electrical Enclosures
Protection Level: IP65
Type: Control Box
External Size: 600mm*600mm*400mm
Color: Silver
OEM Ability: Provide OEM
Certificates: CE CCC
For: stainless steel distribution box IP65
Product Description

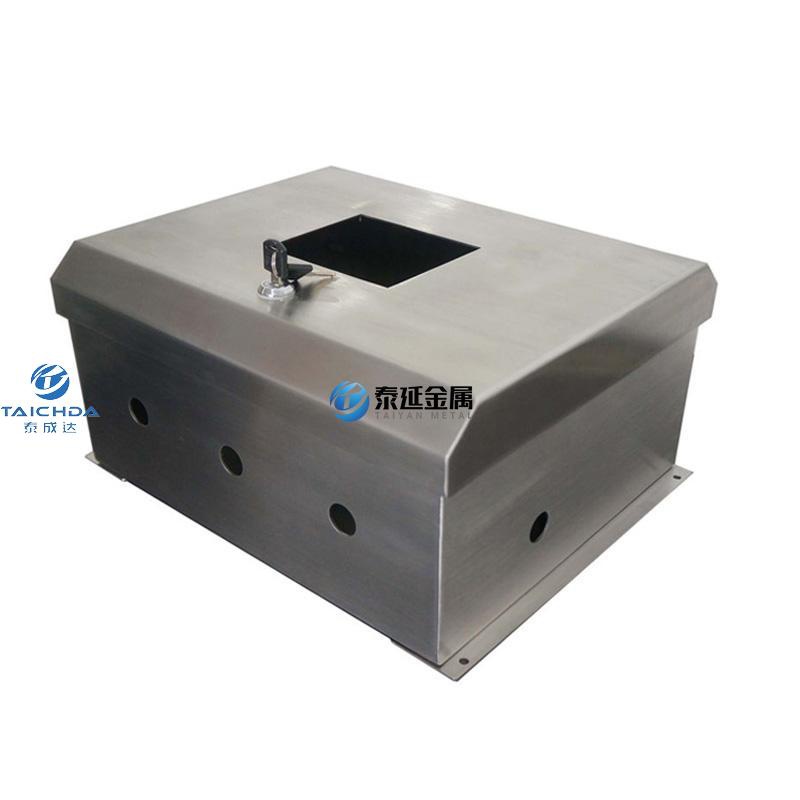

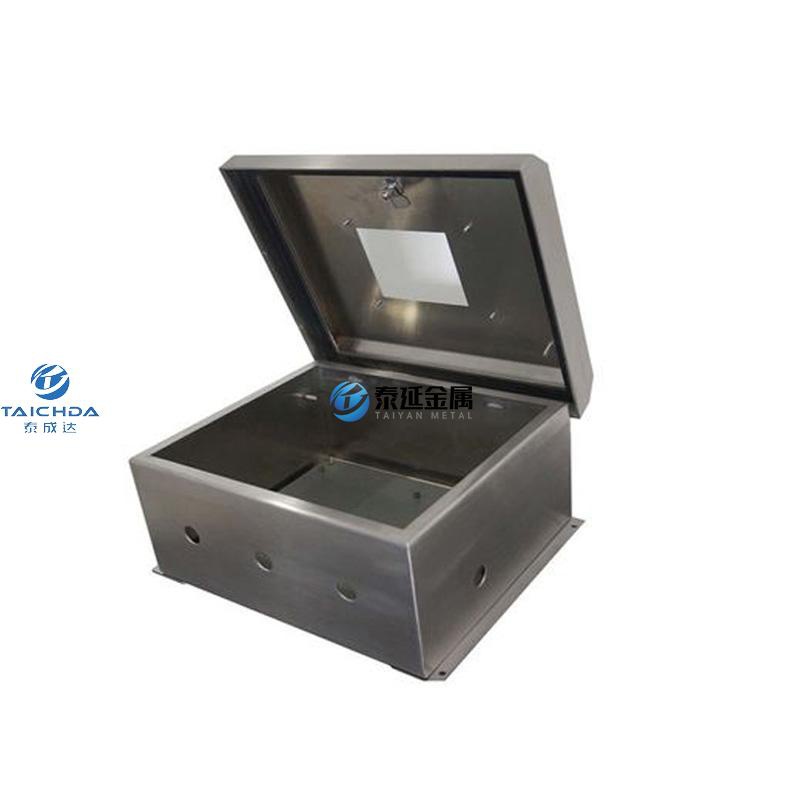

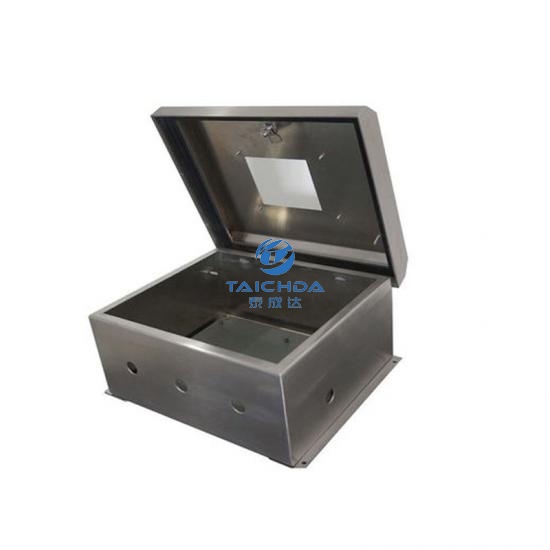

stainless steel distribution box
1. Material: SUS304(Other material can be optional)
2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized
3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing
|
Item Name: |
BAK stainless steel distribution box |
|
|
Material: |
SUS304(Other material can be optional) |
|
|
Thickness: |
Box Body:1.5mm(2.0mm optional) Door Plate:2.0mm Mounting Plate:2.5(3.0mm optional) |
|
|
Standard Configuration: |
Box Body, Door Plate, Sealing Strip, Grounding Sets, Mounting Plate, Door Lock |
|
|
Surface Treatment: |
Wire Drawing, Mounting Plate is Galvanized |
|
|
Class of Protection: |
IP56(According to GB4205-1993) PU Foaming Sealing |
|
|
MOQ: |
100 PCS |
|
|
Supply Ability: |
10000 PCS/Month |
|
|
Delivery Time: |
10-15 days |
|
|
Remark: |
Special Demands Can Be Customized |
Zhangzhou Taichengda Metal Products Co., Ltd is a sheet metal fabricated manufacturer. Many kinds of steel cabinets and enclosures made of stainless steel and mild steel material here we do the custom production, such as electric control panel cabinets, gates operator covers, washroom dispensers, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes, electrical operator tables, sheet metal laser cutting parts, punching parts, rolling circularity parts etc..
Most of these sheet metal enclosures and cabinets are used in Power Control System, Gates Operator System, Health Care System, Air Compressor System, Natural Gas System, Compressed Air Refrigeration System, Compressed Air Dryer, Water Air Conditioning System, Sterilization Machine, Frequency Conversion Pump Unit, Oil And Gas Industry and so on.
With more than 15 years experience, our company and products have been approved by ISO, SGS,CCC, RoHS and IP65 certification. Come on with us ,please! Good quality products with best price here will be always offered to you.
